Orthopedic Wires, Pins, Staples & Drill Bits

Orthopedic wires, pins, and staples are commonly used in orthopedic surgery to provide fixation, stability, and support for fractured bones, joint reconstructions, and soft tissue repairs. These devices are typically made of biocompatible materials such as stainless steel or titanium.

Orthopedic wires are thin, flexible metal wires used in orthopedic surgery for various purposes. They are made of stainless-steel materials and are available in different sizes and configurations to suit specific surgical needs.

Here are some common uses of orthopedic wires:
1. Fixation: Orthopedic wires can be used to provide temporary or permanent fixation of fractured bones. They can be passed through bone fragments to hold them in place while the bone heals. Wires can be used alone or in combination with other fixation methods like pins, screws, or plates.
2. Tension band wiring: It is a technique where orthopedic wires are used to convert tension forces on bone into compression forces, promoting stability and aiding in fracture healing. This technique is often used in fractures around joints, such as the patella (kneecap) or olecranon (elbow).

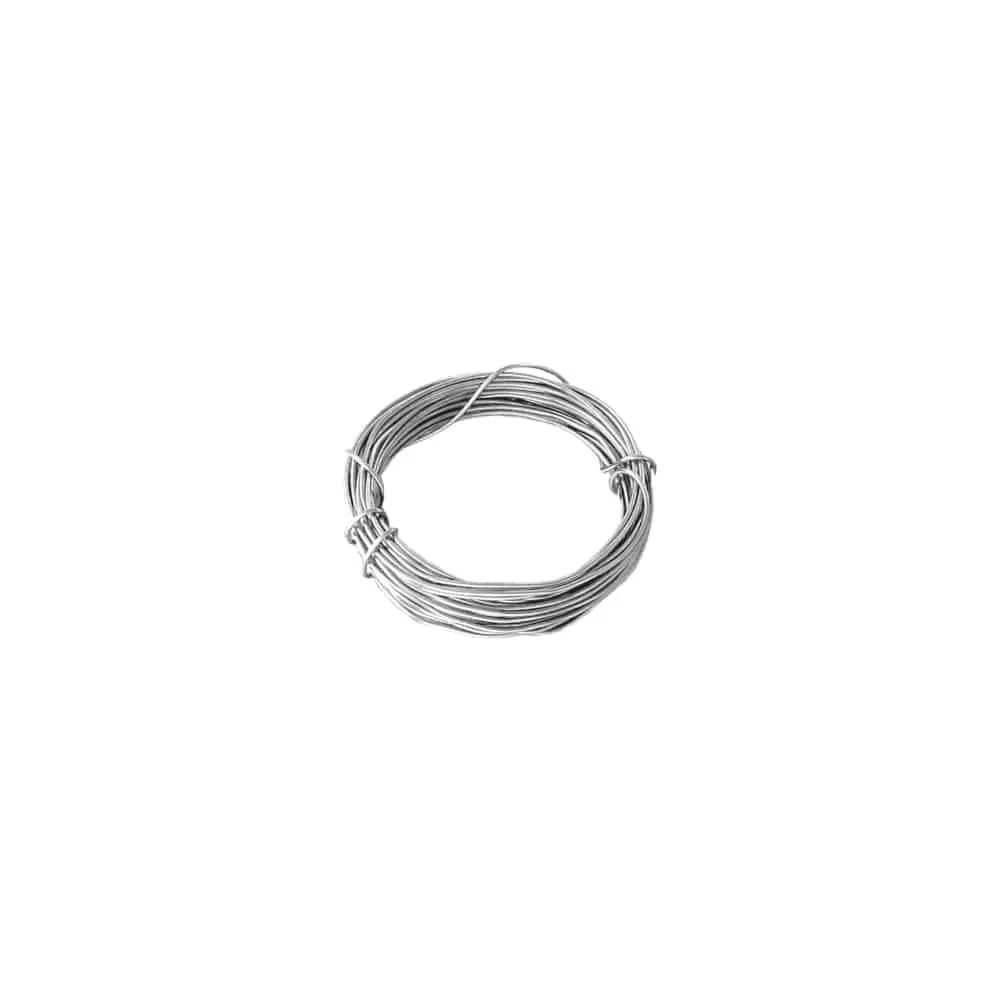

3. Cerclage wiring: It involves encircling a fractured bone with orthopedic wires to provide circumferential compression and stability. It is commonly used in long bone fractures, such as the femur or humerus, to support and align the fractured segments.
4. Soft tissue fixation: Orthopedic wires can also be used for soft tissue fixation, such as repairing ligaments or tendons. They can be used to anchor and reattach soft tissues to bone or to secure tissue grafts during reconstructive procedures.
5. External fixation: In external fixation systems, orthopedic wires are often used in conjunction with pins or half pins to attach an external frame or fixator to the bone. The wires are threaded through the skin and underlying soft tissues and then connected to the external frame, providing stability and alignment to the fractured or injured bone.

Orthopedic wires are versatile and offer several advantages in orthopedic surgery. They are relatively inexpensive, readily available, and can be easily manipulated and adjusted during the surgical procedure. However, it’s important to note that the use of orthopedic wires requires surgical skill and expertise to ensure proper placement, tension, and alignment.
Here are some types of orthopedic pins commonly used in orthopedic procedures:

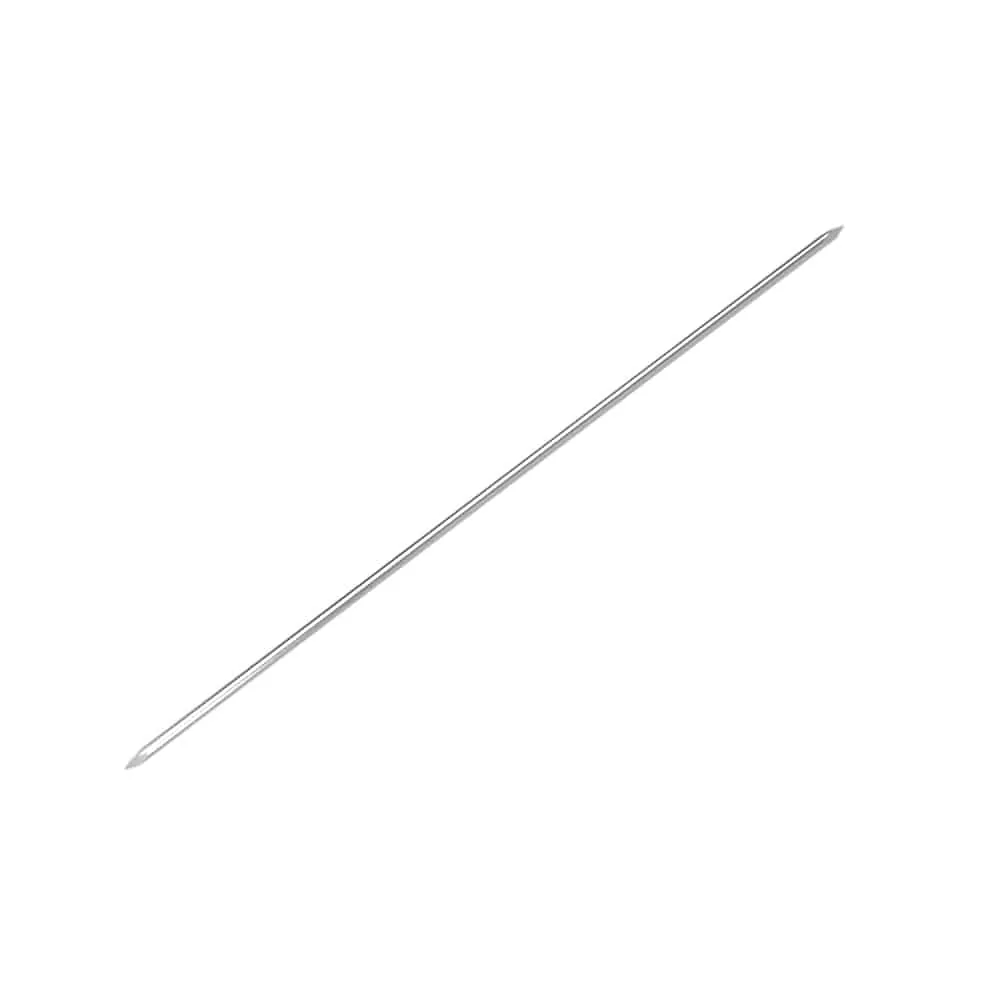

1. Kirschner wires (K-wires): They are thin, smooth pins with a pointed tip. They are commonly used for the temporary fixation of fractures, holding bone fragments in place until more definitive fixation can be performed. K-wires are often used in hand and foot surgeries, as well as for the initial stabilization of long bone fractures.

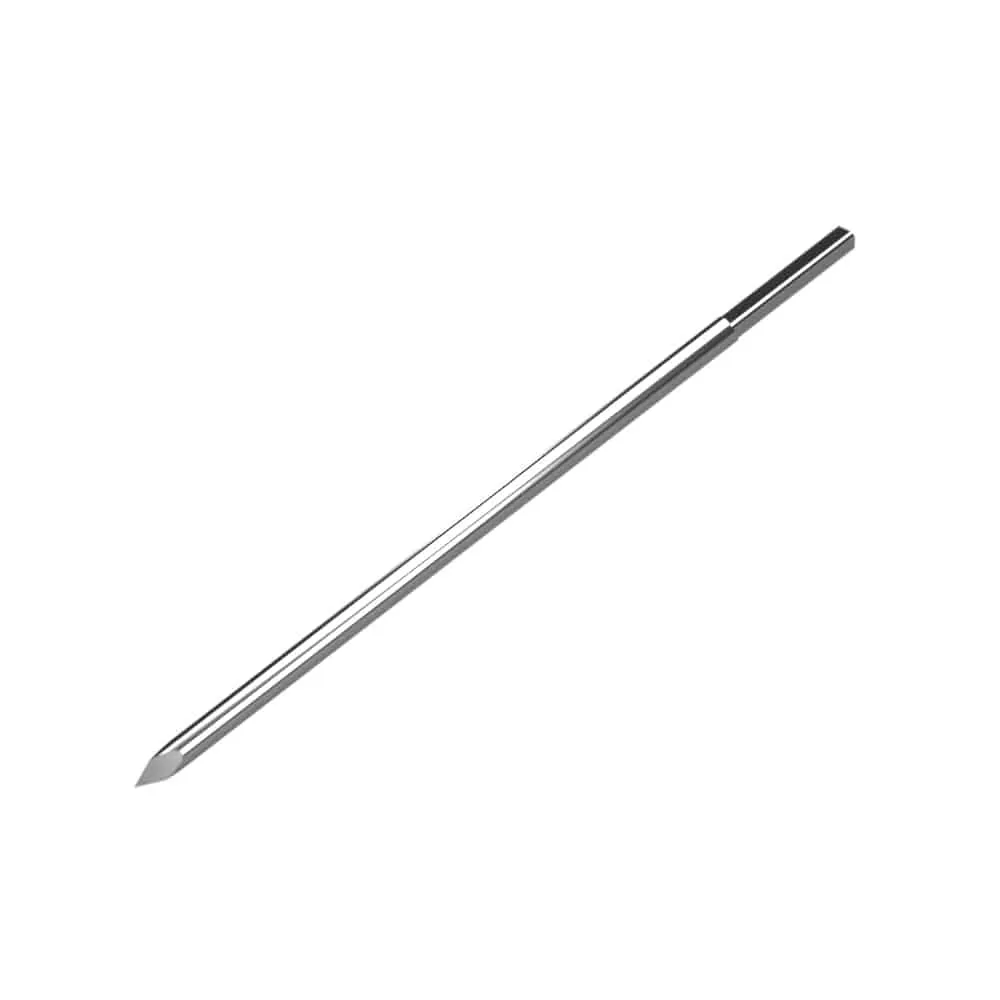

2. Steinmann pins: They are larger-diameter pins with a threaded or smooth surface. They are used for a variety of purposes, including fracture fixation, bone realignment, or soft tissue attachment. Steinmann pins are often used in orthopedic surgeries involving the upper extremities, such as shoulder or elbow procedures.
3. Rush pins: They are smooth or threaded pins with a tapered tip. They are commonly used in joint reconstructions, particularly for stabilizing small bones or fragments. Rush pins are often used in procedures involving the ankle, wrist, or finger joints.
4. Schanz screws are a type of orthopedic screw used for fixation and stabilization in various orthopedic procedures. They have a cylindrical shape with a threaded or partially threaded shaft. They typically have a tapered tip to facilitate insertion into bone. They are available in different lengths and thicknesses to accommodate different bone sizes and fixation requirements. Schanz screws usually have external threads along the shaft, providing secure fixation and preventing migration or loosening after insertion.

These devices are used in a variety of orthopedic procedures, including fracture repair, joint reconstruction, spinal surgery, and soft tissue repairs. The choice of which device to use depends on several factors, such as the location and type of injury, surgeon preference, and patient-specific considerations.

It’s important to note that the use of orthopedic wires, pins, and staples requires expertise and proper surgical technique. The selection and placement of these devices should be performed by qualified orthopedic surgeons based on a thorough evaluation of the patient’s condition and the specific surgical requirements.

Following surgery, proper postoperative care and rehabilitation are crucial for optimal healing and functional recovery. It’s essential to follow the guidance of the surgical team and adhere to any prescribed postoperative instructions to ensure the best possible outcomes.
